Bearings are often called the “joints of market.” Getting the choice right directly affects your tools’s reliability, life span, and upkeep prices. Many bearing failings don’t originate from poor quality– they originate from incorrect options. Points like lots calculation errors, ignoring speed restrictions, or selecting the incorrect lubrication approach. These tiny mistakes can cause tools to damage down early in its life span. This guide walks you through the whole selection process, offering designers and procurement experts a clear path from evaluating working conditions to verifying the right bearing version.
Component One: What You Required to Know Prior To Starting
Prior to you open up any kind of bearing catalog, ask on your own one question: What exactly does this machine need the birthing to do? The response hinges on five key locations:
1. Lots Qualities
Load is the leading consider birthing option. You require to determine 3 things:
Direction: Is it radial load (vertical to the shaft), axial load (alongside the shaft), or a mix of both?
Size: Is it light, modest, or heavy? Any type of impact lots?
Nature: Is the load stable or transforming? Exactly how often do effect lots take place and just how strong are they?
Take a belt conveyor for instance. The bearings at the drive end tackle radial lots from belt tension, the weight of the belt and rollers, plus the shaft setting up. When calculating, you have to take into consideration various operating problems– startup, typical running, stopping– and make use of the worst-case circumstance for your layout.
2. Rate Problems
(bearings for steel mill)
Speed is another important variable affecting birthing life. According to tiredness life concept, birthing life has an inverse connection with rate. For variable speed problems, you require to determine the equivalent rate. Take a rotary kiln assistance roller– its rate might range from 0.5 to 2.5 r/min. You would certainly need to weight the running time at each speed to get an equal value.
One thing to look out for: recognizing only the optimum rate can ruin your lubrication strategy. The lubricant you pick based upon top speed might not develop an appropriate oil movie at lower rates. Also, if your maker has long idle periods, you need to mention that– otherwise neighboring tools resonances can trigger false brinelling damages.
3. Required Life Span
Bearing life span is normally revealed as L10h (the number of hours that 90% of a bearing team will certainly reach prior to fatigue spalling shows up). An usual error is going with an overly lengthy life– as soon as L10h exceeds 100,000 hours, the bearing size obtains too huge. It comes to be tougher to lubricate, torque increases, and it ends up being a lot more sensitive to minimum load. In the end, it could stop working for factors other than fatigue.
4. Area Constraints
You need to recognize your readily available space limitations from the beginning– shaft diameter range, housing bore size, axial size limitations. As soon as you know the matching shaft diameter and readily available space, you can swiftly narrow down your options.
5. Running Accuracy Requirements
Many applications do just great with typical precision bearings. But also for high-speed or high-precision tools like device tool pins, you’ll need P5, P4, or even greater grades. Just keep in mind that choosing greater precision without a real requirement will drive up costs significantly. Suit the grade to your actual requirements.
Part Two: Matching Birthing Kinds to Working Issues
When you have those specifications clear, the next step is to match the ideal bearing type based on tons direction, size, speed, and imbalance resistance.
1. Load Instructions: Radial, Axial, or Incorporated?
This is one of the most standard filter. It can point you to a couple of candidates immediately:

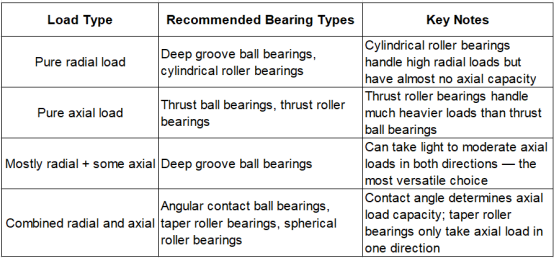

When the axial-to-radial load proportion (Fa/Fr) adjustments, your option logic changes also. At reduced ratios, choose deep groove ball bearings. At modest ratios, make use of small-contact-angle angular call bearings or taper roller bearings. At high ratios, you’ll require large-contact-angle bearings, or think about incorporating a drive bearing with a radial bearing.
( Radial)
2. Lots Size: Ball Bearings or Roller Bearings?
This is a timeless selection:
Light or modest tons: Opt for sphere bearings (deep groove or angular contact). The factor contact in between balls and raceways gives lower friction, making them ideal for tool to broadband.
Heavy or effect loads: You need to use roller bearings (cylindrical, spherical, or taper). Line get in touch with between rollers and raceways offers much higher tons ability and far better impact resistance.
3. Speed: Round Bearings for Broadband, Roller Bearings for Low
Normally talking, sphere bearings have greater speed restrictions than roller bearings. For high-speed applications (above 1000 r/min), placed round bearings at the top of your checklist. When you require the highest feasible rate with pure radial lots, open deep groove sphere bearings are your best choice. For combined lots at high speed, angular get in touch with round bearings are the means to go.
Round roller bearings, taper roller bearings, and needle bearings have relatively reduced rate limitations. They’re generally suited for low-to-medium rate, heavy-load problems.
4. Imbalance Resistance: Do You Need Self-Aligning?
This set often gets neglected however it’s exceptionally crucial. You must take into consideration self-aligning bearings when:
Birthing housing bores do not line up well
The shaft isn’t rigid enough and bends throughout operation
The bearing span is lengthy and thermal growth causes angular imbalance
You’re using different split housings (like pillow block bearings)
Round roller bearings and spherical round bearings have concave external ring raceways. This allows a particular quantity of angular misalignment between the inner and outer rings without harmful side anxiety. They can compensate for both vibrant deflection and fixed setup mistakes.
On the other hand, cylindrical roller bearings, taper roller bearings, and needle bearings have extremely minimal self-aligning capability. Even a small angular imbalance can create anxiety concentration at the roller finishes, leading to high side pressures that considerably shorten birthing life. Deep groove sphere bearings do have some self-aligning capability, but the permitted angle is little– going beyond it will lower life also.
5. Axial Growth Settlement: Fixed End or Drifting End?
Lengthy shafts expand and agreement with temperature adjustments throughout operation. That means you need to set up your bearing plan with one set end and one drifting end.
NU and N collection cylindrical roller bearings have no flanges on the inner ring (or on one side). This allows the shaft relocation freely in the axial instructions about the real estate– making them ideal as floating-end bearings. NJ and NUP series can offer axial positioning in one or both directions, so they function well as fixed-end bearings. This arrangement is extremely typical in transmissions and electric motors.
Component 3: BMB Line Of Product at a Glimpse

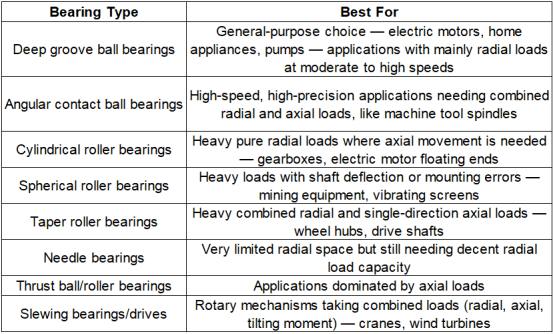

BMB supplies a total series of industrial bearings, covering all the major kinds we’ve reviewed. This quick reference table links the selection principles over directly to specific product categories:
Part Four: Diving Deeper– Accuracy, Clearance, Lubrication, and Seals
( Axial)
1. Precision Grades
Standard precision (P0) helps the large bulk of basic equipment. For precision tools like equipment tool pins or aerospace elements, you’ll need P5 or higher. Tighter accuracy implies tighter dimensional tolerances and better running precision– but likewise higher expenses.
2. Internal Clearance and Preload
Bearings require to preserve appropriate internal clearance after installment. Too much clearance leads to vibration and noise. Insufficient, and thermal development can trigger the bearing to confiscate. In grandfather clauses like maker tool pins, preload (applying adverse clearance) is made use of to boost system strength and rotational precision.
3. Lubricant Choice
Lubrication is a make-or-break variable for bearing life. Grease works for the majority of moderate-speed and temperature level applications– it’s easy to secure and can run maintenance-free for extended periods. Oil (oil bath, oil haze, jet lubrication) is better for high-speed or high-temperature conditions, as it dissipates heat more effectively. When selecting a lubricant, check the speed element (ndm value). Do not simply select based on optimum speed– the oil you pick may not create a proper movie at reduced rates.
4. Securing Program
Select the seal kind based upon your setting: call seals keep dirt out well yet include some rubbing; non-contact seals help high speeds however offer less security versus contamination; open bearings rely upon exterior sealing systems.
Part Five: Life Calculation– From Theory to Method
( or Combined Basic Filter Table)
At the end of the day, you need to validate whether your selected bearing will actually satisfy the predicted life span. This is where standard score life computation is available in.
The fundamental score life L10 formula (ISO 281 criterion):
For round bearings: L10 = (C/P) ³ × (10 ⁶/ 60n) hours
For roller bearings: L10 = (C/P)^(10/3) × (10 ⁶/ 60n) hours
Where:
C: fundamental vibrant load score (kN)– located in the product directory
P: equal dynamic lots (kN)– takes both radial and axial loads into account
The equal vibrant load P is determined as: P = X · Fr + Y · Fa
Fr is the radial load, Fa is the axial lots
X and Y are coefficients that depend upon bearing kind and the Fa/Fr proportion– check the catalog for these worths
For even more demanding conditions, you can use modification variables: Ln = a1 × a2 × a3 × L10
a1 is the integrity element (a1 = 1 for 90% dependability, about 0.21 for 99%)
a2 is the material factor (high-grade bearing steel can reach 1.5 to 2)
a3 is the operating conditions factor (good lubrication and cleanliness can give 2 to 3)
With this computation, engineers can verify that the chosen bearing meets the necessary service life. It likewise aids contrast numerous options and make data-driven decisions.
This guide has actually strolled you via the total selection course– from assessing working problems, to matching the appropriate bearing type, to confirming life span. Understanding and using this approach will help you make accurate, efficient, and cost-efficient bearing choices across a vast array of industrial applications.
