1. Introduction: Why Product Selection Matters for Your Crucible
Selecting the ideal ceramic crucible is not simply a technological information; it is a foundational decision that affects the success of your high-temperature processes. The crucible works as the key container for melting, sintering, and heat-treating products, and its performance straight affects item pureness, power effectiveness, and operational security. At Ozbo, we comprehend that every application has one-of-a-kind demands. As a specialized vendor of innovative ceramic materials and tailored manufacturing solutions, we supply high-purity ceramic powders and completed crucible solutions to markets worldwide. This overview supplies a detailed contrast of the most usual ceramic crucible materials, assisting you navigate the complex landscape of options to discover the best match for your particular requirements. Our objective is to encourage you with the understanding to make a notified decision, guaranteeing optimal efficiency and durability for your important procedures.

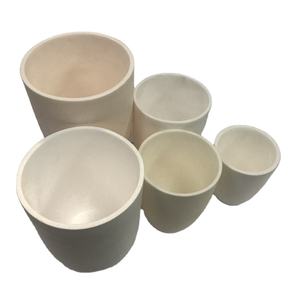

(Ceramic Crucible)
2. Alumina Crucibles: The Versatile Workhorse
Alumina, or aluminum oxide (Al2O3), is the most extensively used ceramic product for crucibles, making its online reputation as a reliable and versatile workhorse. High-purity alumina crucibles, with an Al2O3 web content more than 99%, provide an extraordinary balance of residential or commercial properties that make them appropriate for a vast range of applications. Their appeal originates from their superb chemical inertness, good thermal security, and cost-effectiveness contrasted to more customized ceramics. For numerous common research laboratory and industrial processes, an alumina crucible provides a reputable and affordable service. Its widespread availability and well-understood attributes make it a best option for customers who need a tested, well-rounded entertainer without the premium cost connected with innovative materials.
Alumina crucibles show exceptional high-temperature performance. They can hold up against continual use at temperature levels approximately 1600 ° C and withstand short-term exposure up to 1800 ° C. This wide operating temperature level array covers the demands of several ceramic sintering, glass melting, and steel heat-treating procedures. In addition to thermal strength, they flaunt solid resistance to chemical corrosion, safeguarding the crucible from deterioration by several acids, alkalis, and molten products. Moreover, high-purity alumina crucibles are designed to withstand thermal shock, suggesting they resist fracturing when based on quick temperature level modifications. This mix of high purity, temperature level resistance, and chemical security makes alumina a trusted and flexible selection for routine operations.
Nonetheless, alumina crucibles do have constraints. They are not suggested for use with products that chemically attack alumina, such as liquified alkali metals or specific fluxes. Their thermal conductivity is lower than some other advanced ceramics like silicon carbide or aluminum nitride, which can result in longer home heating and cooling cycles and much less consistent temperature level distribution. For applications requiring exceptionally high thermal conductivity, remarkable thermal shock resistance, or outright non-wetting with specific molten steels, alternate products like silicon carbide, aluminum nitride, or boron nitride may be more appropriate. Recognizing these trade-offs is essential to choosing a crucible that not just meets your temperature level requirements however additionally maximizes your whole procedure.

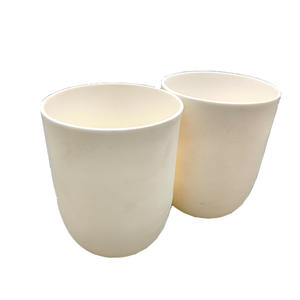

(Alumina crucible)
3. Silicon Carbide Crucibles: The High-Performance Champion
Silicon carbide (SiC) crucibles stand for a considerable step up in performance, offering a combination of high toughness, outstanding thermal conductivity, and superior wear resistance. These crucibles are the standard choice for demanding industrial applications, particularly in steel casting and melting, where fast heat transfer and durability are extremely important. Compared to traditional clay-graphite or alumina crucibles, SiC crucibles are denser, more powerful, and extra resistant to disintegration, leading to a substantially longer service life. Their superior thermal conductivity, typically three to five times that of alumina, guarantees much faster home heating, even more consistent temperature levels throughout the melt, and reduced power consumption. This efficiency equates to higher productivity and lower functional expenses.
The performance of SiC crucibles is additionally defined by their specific manufacturing procedure. Numerous sorts of SiC crucibles are available, each with distinctive residential or commercial properties. Reaction-bonded silicon carbide (RB-SiC) is created by penetrating a permeable SiC preform with molten silicon, which responds to form additional SiC that bonds the structure. This process is cost-efficient for huge, intricate shapes. Nonetheless, RB-SiC has some recurring cost-free silicon, which can restrict its optimum usage temperature level and chemical resistance. In contrast, pressureless sintered silicon carbide (SSiC) is made by sintering high-purity SiC powder at high temperatures without used stress, resulting in a fully dense, highly pure material with superb mechanical residential properties and chemical resistance. SSiC uses superior performance in severe environments but at a greater cost. Recrystallized silicon carbide (RSiC) is generated by a high-temperature evaporation-condensation procedure, producing a porous framework with outstanding thermal shock resistance and high purity, making it ideal for applications involving severe temperature gradients. Each kind serves various efficiency and spending plan needs.
When choosing a SiC crucible, it is important to consider the particular kind that finest suits your procedure conditions. For basic metal melting, reaction-bonded SiC supplies a good equilibrium of performance and expense. For applications requiring maximum pureness, chemical resistance, and high-temperature toughness, pressureless sintered SiC is the exceptional option. If your process includes fast and repetitive thermal biking, recrystallized SiC’s exceptional thermal shock resistance is invaluable. Ozbo can give guidance on selecting the optimal SiC crucible kind, ensuring you get the ideal material for your particular melting, sintering, or heat-treating application. Our know-how in advanced ceramics permits us to tailor services that take full advantage of performance and crucible life-span.

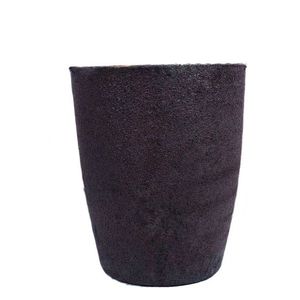

(Silicon carbide crucibles)
4. Advanced Nitride Ceramics: Aluminum Nitride, Silicon Nitride, and Boron Nitride
For specialized applications where conventional ceramics fall short, progressed nitride ceramics offer unmatched efficiency. Aluminum nitride (AlN), silicon nitride (Si3N4), and boron nitride (BN) each have special residential or commercial properties that make them crucial in sophisticated sectors such as semiconductor production, electronic devices, and aerospace. These products are crafted to satisfy extreme demands, including ultra-high thermal conductivity, extraordinary thermal shock resistance, and chemical inertness in the most destructive settings. While they regulate a higher cost point than alumina or standard SiC, their efficiency advantages can be crucial for process success and product quality in advanced applications.
Aluminum nitride crucibles are treasured for their incredibly high thermal conductivity, which can be over five times that of alumina. This residential property permits exceptionally effective and consistent warmth transfer, making AlN ideal for applications calling for accurate temperature control, such as crystal growth and semiconductor handling. AlN likewise has a thermal development coefficient very closely matched to silicon, reducing thermal anxiety and improving compatibility with silicon wafers. It can endure temperatures up to 1400 ° C in air and a lot greater in inert environments, and it offers excellent electrical insulation. Nonetheless, AlN is vulnerable to oxidation at very heats and can be more testing to device than a few other porcelains, which can influence production expenses.
Silicon nitride crucibles are renowned for their superior resistance to thermal shock and their non-wetting actions with numerous liquified metals, particularly light weight aluminum. Si3N4 can be based on quick temperature changes from room temperature as much as 1000 ° C without fracturing, a property that substantially prolongs its service life in cyclic home heating processes. It maintains high toughness at elevated temperatures and exhibits exceptional chemical security, withstanding strike from many not natural acids and many organic substances. This combination of residential properties makes silicon nitride an exceptional choice for managing hostile liquified steels and for applications where the crucible is exposed to severe thermal biking.

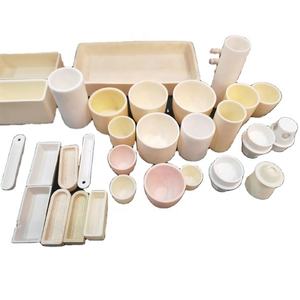

(Advanced Nitride Ceramics)
Boron nitride crucibles supply an one-of-a-kind set of benefits, consisting of superb machinability and severe chemical inertness. BN is just one of the few porcelains that can be quickly machined into facility, high-precision forms utilizing typical devices, which is a significant advantage for customized crucible styles. It shows really low thermal expansion and excellent thermal shock resistance, with the ability of withstanding duplicated relieving from 1500 ° C without splitting. BN is chemically secure and does not react with most molten steels, making it suitable for thawing high-purity alloys and for applications where crucible contamination need to be prevented. It can be used at up to 1800 ° C in a vacuum cleaner and up to 2100 ° C in an inert environment. However, BN has reduced mechanical toughness and is a lot more prone to oxidation in air at high temperatures, restricting its use to protective atmospheres or vacuum cleaner conditions.
5. Specialty Oxide Ceramics: Quartz, Mullite, and Spinel
Past the generally used alumina and advanced nitrides, a variety of specialized oxide porcelains supplies targeted benefits for specific applications. Integrated quartz, mullite-based make-ups like diamond mullite and cordierite mullite, and magnesium aluminum spinel each provide an one-of-a-kind combination of buildings such as exceptional purity, high thermal shock resistance, or superb chemical resistance to certain slags. These materials are usually selected for particular niche applications where their particular toughness outweigh the wider performance of even more general-purpose porcelains. Comprehending these specialized alternatives allows you to adjust your material choice for ideal process results.
Integrated quartz crucibles are defined by their extremely high purity, with SiO2 pureness commonly going beyond 99.998%. This makes them the product of selection for the semiconductor and solar sectors, where they are made use of for the vital process of drawing single-crystal silicon. Their high pureness makes sure that the liquified silicon is not infected, a non-negotiable need for generating high-grade electronic-grade silicon wafers. Fused quartz also offers superb thermal shock resistance and a very reduced coefficient of thermal development, making it steady under rapid temperature level adjustments. However, quartz crucibles are palatable products, normally utilized for a single crystal pull, and have a relatively reduced maximum usage temperature of around 1600 ° C. ^
. Corundum mullite and cordierite mullite crucibles incorporate the residential or commercial properties of their basic products to supply balanced performance. Corundum mullite, a composite of alumina (corundum) and mullite, provides high thermal shock resistance, good chemical security, and superb mechanical stamina at high temperatures. Its thermal development coefficient is little, making it dimensionally secure under thermal cycling. Cordierite mullite leverages the very low thermal growth of cordierite, which provides it phenomenal resistance to thermal shock, combined with the high-temperature strength of mullite. These crucibles are commonly utilized in the porcelains market for shooting kiln furnishings and in applications where good thermal shock resistance and modest temperature level ability (approximately 1400 ° C )are needed. They stand for an economical service for many industrial heating procedures.
Magnesium light weight aluminum spinel (MgAl2O4) crucibles are a high-performance oxide alternative known for their exceptional resistance to thermal shock and chemical assault, particularly from standard slags and alkali steels. With a melting factor of 2135 ° C and a refractoriness of about 1900 ° C, spinel can hold up against extremely high temperatures. It is used in different induction furnaces and is especially appropriate for melting non-ferrous metals and dealing with destructive slags. Spinel crucibles can attain a lengthy life span, usually surpassing 100 cycles in applications below 1300 ° C. While not as universally utilized as alumina, spinel’s particular resistance to fundamental settings makes it a very useful product in specific metallurgical and glass-making processes.

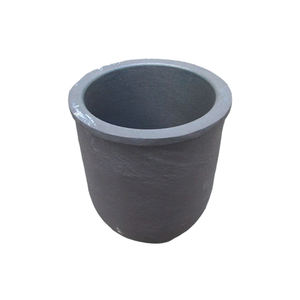

(Specialty Oxide Ceramics)
6. Silicon Nitride-Bonded Silicon Carbide Crucibles
Silicon nitride-bonded silicon carbide (Si3N4-SiC) stands for a composite material that integrates the high thermal conductivity and put on resistance of SiC with the outstanding thermal shock resistance and chemical security of Si3N4. In this product, silicon carbide grains are adhered together by a matrix of silicon nitride, which forms throughout a reaction sintering procedure. This composite structure results in a crucible material that is very resistant to thermal biking, mechanical tension, and corrosion from molten metals and slags. The Si3N4 bond offers a solid, refractory link in between the SiC particles, boosting the total durability and thermal shock resistance of the material past that of reaction-bonded SiC alone.
These crucibles are particularly fit for requiring applications in the metallurgical and foundry sectors. They are used in numerous heater kinds for melting and holding non-ferrous metals, such as aluminum, copper, and zinc alloys. The product’s resistance to moistening and rust by molten light weight aluminum makes it an exceptional selection for light weight aluminum foundries, where crucible life is a significant expense element. Furthermore, silicon nitride-bonded silicon carbide is made use of in the production of riser tubes and other elements that enter into contact with aggressive thaws. The product’s capacity to withstand both the thermal tensions of cyclic procedure and the chemical assault of destructive slags brings about significantly longer life span contrasted to conventional clay-graphite or alumina crucibles.
When picking a silicon nitride-bonded silicon carbide crucible, think about the specific operating conditions, including temperature level, atmosphere, and the type of steel or slag it will get in touch with. These crucibles provide a substantial enhancement in efficiency and long life for requiring industrial melting applications, typically warranting their greater first expense through lowered downtime and less substitutes. Ozbo supplies knowledge in selecting the suitable composite crucible material to fulfill your details process requirements, assisting you achieve higher effectiveness and lower general operating expense. Our advanced ceramic solutions are engineered for the hardest commercial difficulties.
7. How to Pick the Right Porcelain Crucible for Your Application

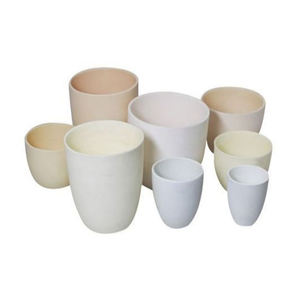

(Silicon Nitride-Bonded Silicon Carbide Crucibles)
Picking the optimal ceramic crucible entails a methodical assessment of your procedure needs. The first and most crucial criterion is the optimum operating temperature level. You should pick a material that can conveniently withstand your procedure’s optimal temperature, with a margin of security. Consider the environment too; some materials, like boron nitride and silicon nitride, are best utilized in vacuum or inert atmospheres at their highest temperature levels, while alumina and silicon carbide carry out well in oxidizing settings. The crucible’s compatibility with the materials it will contain is equally important. It should be chemically inert to the fee and any changes or slags to prevent contamination and crucible deterioration.
Beyond temperature and chemical compatibility, take into consideration thermal shock resistance. If your process includes fast heating or cooling, a material with low thermal growth and high thermal conductivity, like silicon nitride or recrystallized silicon carbide, is important to protect against cracking. The called for crucible sizes and shape additionally affect material choice. While materials like boron nitride are easily machined to complex shapes, others like pressureless sintered silicon carbide may have constraints. Lastly, assess the expense of the crucible versus its predicted service life. A much more pricey crucible that lasts ten times longer is usually much more cost-effective in the long run than a less expensive one that needs frequent substitute.
For basic laboratory and lots of basic industrial procedures, high-purity alumina crucibles supply an outstanding equilibrium of efficiency, chemical resistance, and cost. For non-ferrous metal melting and applications requiring high thermal conductivity and wear resistance, silicon carbide crucibles are the premium option. For the most demanding applications entailing severe thermal cycling, destructive thaws, or ultra-high pureness needs, advanced products like silicon nitride, aluminum nitride, boron nitride, or composite materials are necessary. By carefully evaluating your certain procedure criteria and talking to material specialists like Ozbo, you can select that makes the most of performance, expands crucible life, and maximizes your functional effectiveness.
8. Final thought: Partnering with Ozbo for Your Crucible Requirements
Choosing the ideal ceramic crucible is an essential decision that directly influences the high quality, efficiency, and expense of your high-temperature procedures. As we have actually discovered, the landscape of ceramic crucible materials is diverse, with each option– from the versatile alumina to the high-performance silicon carbide, the advanced nitrides, and the specialized oxides– supplying a special set of residential properties customized to particular applications. Understanding these distinctions is the first step toward optimizing your procedure. The material you pick should line up with your temperature level demands, chemical environment, thermal biking conditions, and spending plan constraints to ensure reputable and regular results.
At Ozbo, we are dedicated to being more than just a distributor; we are your companion in material option and process optimization. With our deep expertise in sophisticated porcelains and a detailed product range that consists of high-purity ceramic powders and custom-fabricated components, we are equipped to assist you with the option process. Our objective is to aid you find not just a crucible, however the optimum remedy that boosts your efficiency and product high quality. We comprehend the complexities of each material and can give tailored recommendations based upon your special functional obstacles.

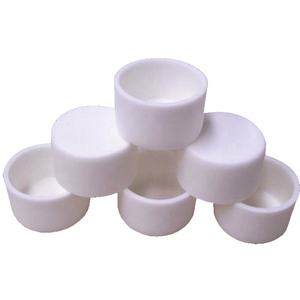

(Ceramic Crucible)
We invite you to check out how Ozbo’s innovative ceramic remedies can satisfy your certain crucible needs. Whether you need a standard alumina crucible for regular laboratory job or a custom-engineered silicon nitride crucible for a requiring commercial procedure, our team prepares to aid. Call us today to review your application, and allow us help you attain quality in your high-temperature processes with the best ceramic crucible product. Companion with Ozbo for integrity, efficiency, and experienced assistance in every crucible you utilize.
